ESD Rubber shelf mat
ESD Rubber shelf mat

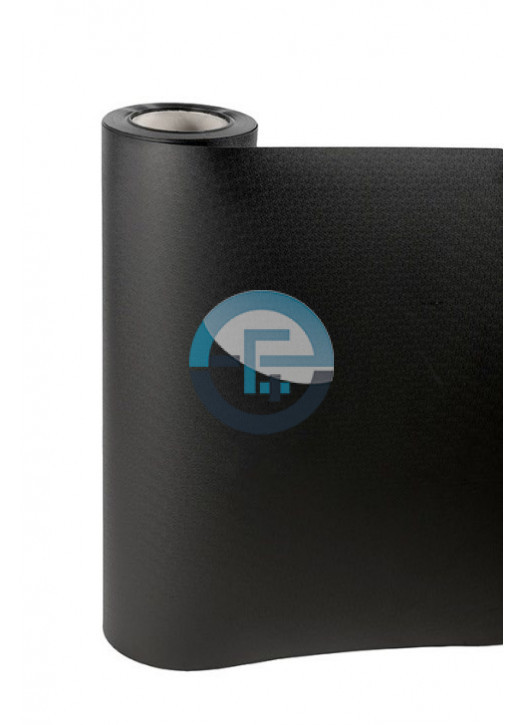

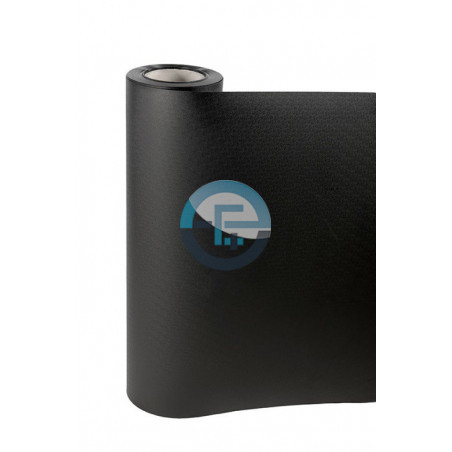

ESD Conductive Rubber Mat for Shelves and Trolleys – Eurostat

32-500-2402

Eurostat ESD conductive carbon-loaded rubber mat: hardness 55 Shore A, thickness 2mm, -40°C to +70°C. Conductive properties. For covering shelving, benches and trolleys.

Dimensions

Our catalogue is available for browsing. Account access and cart features are currently being optimized. Those services will be available again very soon. Thank you for your understanding.

Please contact us for this article


ESD Conductive Rubber Mat for Shelves and Trolleys – Eurostat

The Eurostat ESD conductive carbon-loaded rubber mat is designed for covering shelving, benches and trolleys in EPA zones. Its temperature range -40°C to +70°C makes it suitable for demanding industrial environments.

Physical properties:

  • ✓ Material: conductive carbon-loaded rubber
  • ✓ Elongation: 200%
  • ✓ Density: 1.4
  • ✓ Hardness: 55 Shore A (±10%)
  • ✓ Tensile strength: 7.79
  • ✓ Usage temperature: -40°C to +70°C
  • ✓ Thickness: 2.0mm (±10%)
  • ✓ Colour: black

Electrical properties:

  • ✓ Volume resistance
  • ✓ For covering shelving, benches and trolleys in EPA zones
  • ✓ IEC 61340-5-1 compliant
