ESD Static Shielding Bubble Film 148 µm – 100 m Roll – Eurostat

Name: ESD Static Shielding Bubble Film 148 µm – 100 m Roll – Eurostat
Brand: Eurostat
SKU: 90-161-0305

Reference 90-161-0305

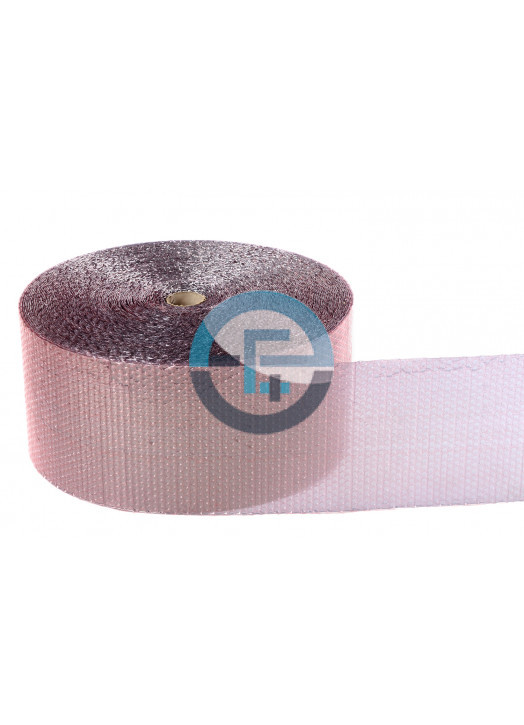

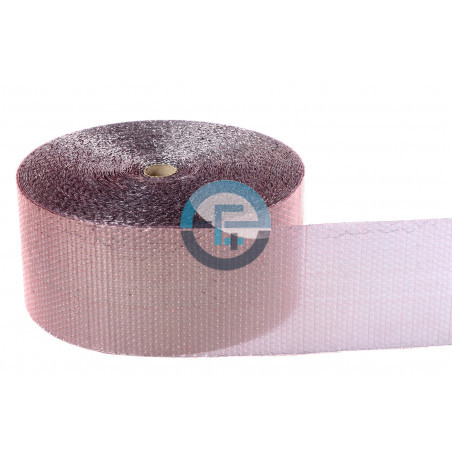

Eurostat static shielding bubble film: co-lamination of a static shielding film and a pink antistatic polyethylene bubble film. 148 µm, 100 m roll, widths from 305 to 1524 mm. ESD and mechanical protection for PCBs and sensitive components.

Dimensions

Our catalogue is available for browsing. Account access and cart features are currently being optimized. Those services will be available again very soon. Thank you for your understanding.

Please contact us for this article

ESD Static Shielding Bubble Film – Eurostat

Eurostat static shielding bubble film combines a static shielding film with an aluminium layer and a pink antistatic polyethylene bubble film. It provides dual protection: shielding against electrostatic discharge and cushioning against mechanical shock. Heat sealable, it can be used to make bags on site or to wrap boards and assemblies directly. Supplied on 100 m rolls.

✓ Construction: dissipative coating / polyester / aluminium / polyethylene / dissipative coating / pink PE bubble film
✓ Protection against ESD, vibration and mechanical shock
✓ For storage and transport of PCBs and sensitive components
✓ Static shielding: energy penetration < 20 nJ (ANSI/ESD S11.31)
✓ Surface resistance: < 10¹¹ Ω (IEC 61340-5-1)
✓ Thickness: 148 µm (± 10%)
✓ Bubble diameter: 10 mm (± 5%)
✓ Heat sealable, abrasion resistant
✓ Widths: 305 mm (12"), 610 mm (24"), 915 mm (36"), 1016 mm (40"), 1067 mm (42"), 1200 mm (47.2"), 1524 mm (60")
✓ Roll length: 100 m
✓ Sales unit: linear metre
✓ Storage: dry location, temperature < 50 °C
✓ Custom widths and configurations available on request
✓ Compliant with IEC 61340-5-1, RoHS 2011/65/EU and Packaging Directive 94/62/EC
