Stat-Gate EPA Control® Calibration Tool Wrist 750kΩ/35MΩ Shoes 100kΩ – Eurostat

61-500-0017

Eurostat Stat-Gate calibration tool: 1 wrist wire + 2 Jack electrodes for shoes + dedicated resistance box. Wrist: 750kΩ/35MΩ ±10%. Shoes: 100kΩ/100–200MΩ ±10%.

Our catalogue is available for browsing. Account access and cart features are currently being optimized. Those services will be available again very soon. Thank you for your understanding.

Please contact us for this article


Stat-Gate EPA Control® Calibration Tool – Eurostat

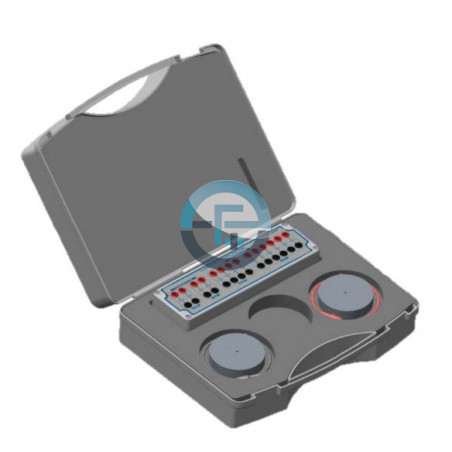

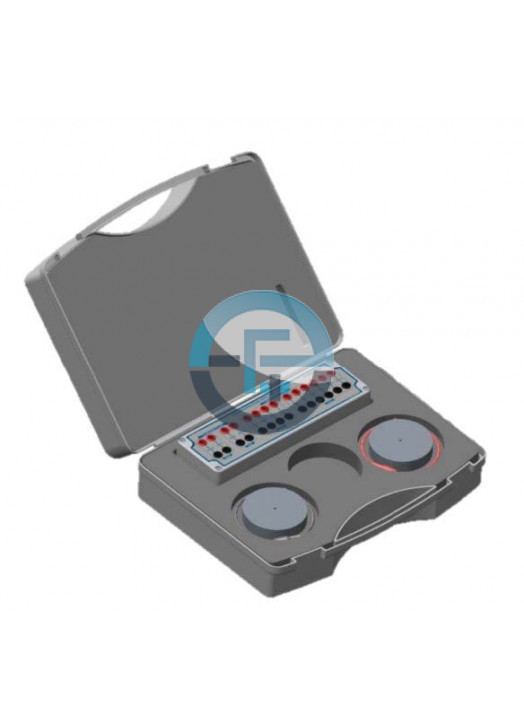

The Eurostat Stat-Gate calibration tool is designed to calibrate and verify EPA access testers. It includes all components needed to simulate wrist strap and footwear resistances.

Contents:

  • ✓ 1 specific wire for wrist connection
  • ✓ 2 metallised contact electrodes with Jack wires for shoe connection

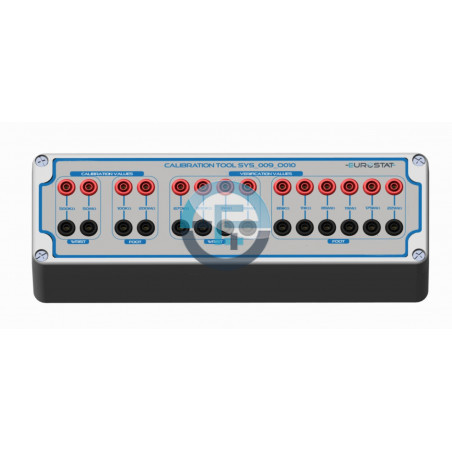

  • ✓ 1 box with dedicated resistance to calibrate and check the access tester

Calibration ranges:

  • ✓ Wrist: 750kΩ and 35MΩ (±10%)
  • ✓ Shoes: 100kΩ and 100/200MΩ (±10%)
  • ✓ Software utility included for updates
  • ✓ Compatible with all Eurostat Stat-Gate systems
  • ✓ IEC 61340-5-1 compliant
