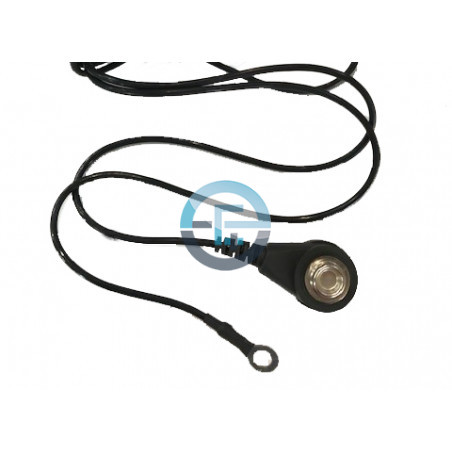

Grounding kit - eyelet plug + 1 male stud

ESD Wrist/Mat Grounding Cord – Male Stud and Eyelet – Eurostat

Name: ESD Wrist/Mat Grounding Cord – Male Stud and Eyelet – Eurostat
Brand: Eurostat
SKU: 30-560-0048

Reference 30-560-0048

Eurostat ESD wrist/mat grounding cord 3m: 10mm male stud + eyelet Ø 5.3mm. Conductive PU-sheathed cables, resistance 1 MΩ ±10%. Black.

Our catalogue is available for browsing. Account access and cart features are currently being optimized. Those services will be available again very soon. Thank you for your understanding.

Please contact us for this article

ESD Wrist/Mat Grounding Cord – Male Stud and Eyelet – Eurostat

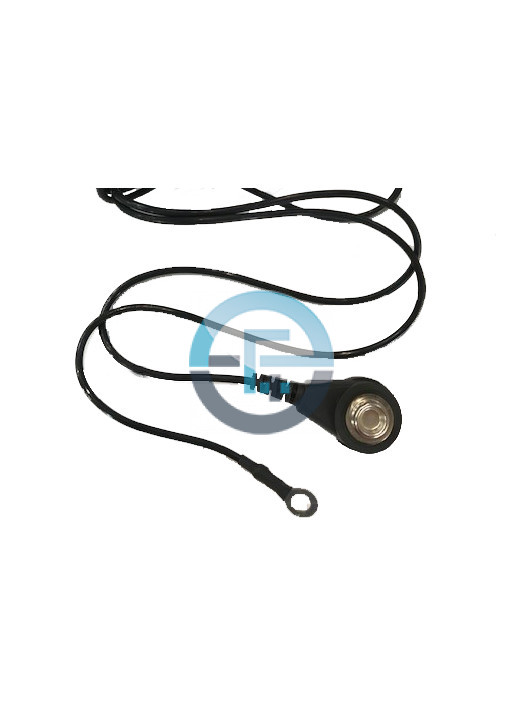

This Eurostat ESD cord connects a table mat to a terminal or grounding point via a 10mm male stud + eyelet configuration in EPA zones. Conductive PU-sheathed cable construction.

✓ Length: 3m
✓ Material: conductive wires with non-conductive PU outer cover
✓ Colour: black
✓ Mat side: 10mm male stud
✓ Terminal side: eyelet diameter 5.3mm
✓ Straight cord diameter: 0.24cm
✓ Resistance: 1 MΩ ±10%
✓ IEC 61340-5-1 compliant
